Let the light in – even where vehicles and foot traffic go
The Powerdaylight walkable & drive-over, designed for durability and performance, our walkable and drive-over daylight tube is the ideal solution for spaces where traditional skylights aren’t an option. Whether installed in pavements, parking decks, industrial floors, or terraces, this robust system channels natural daylight into interior spaces—while seamlessly withstanding foot and vehicle traffic. It’s daylight, delivered with strength and subtlety.
Applications
This traffic-load daylight solution is suited for a wide range of environments:
- Underground parking garages
- Commercial loading areas
- Pedestrian walkways

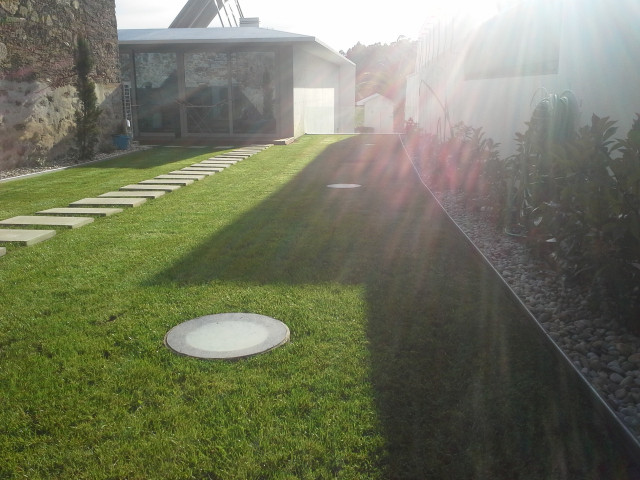

- Public squares and terraces

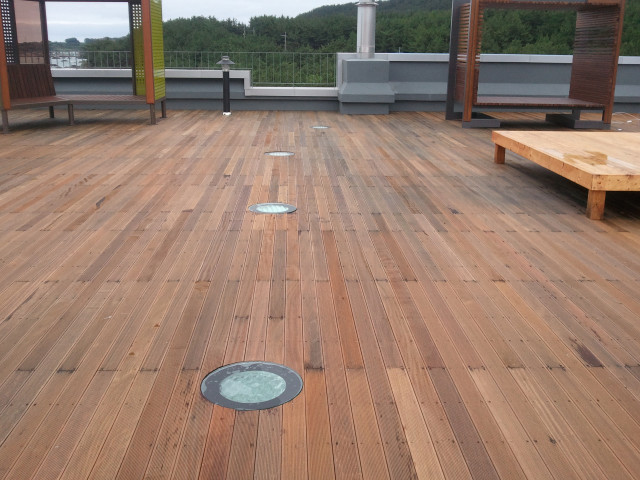

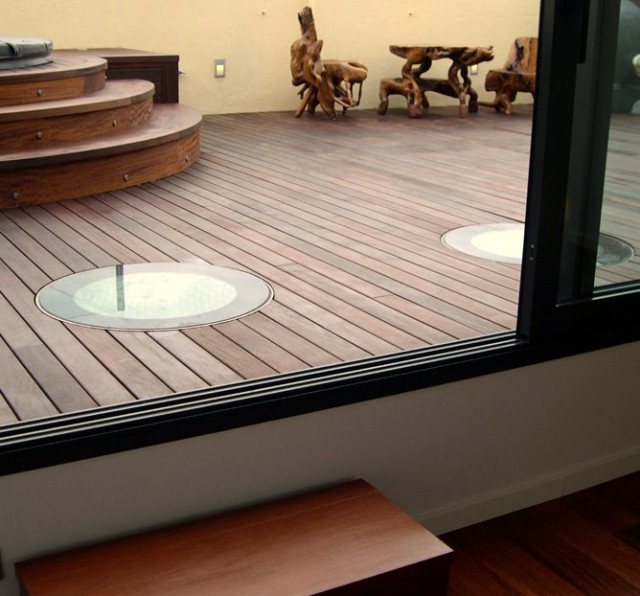

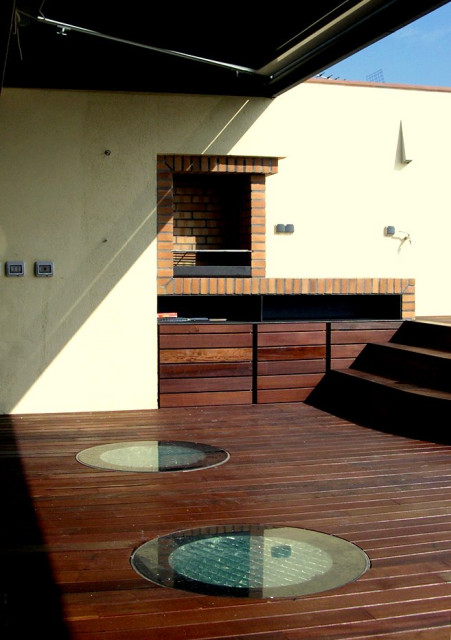

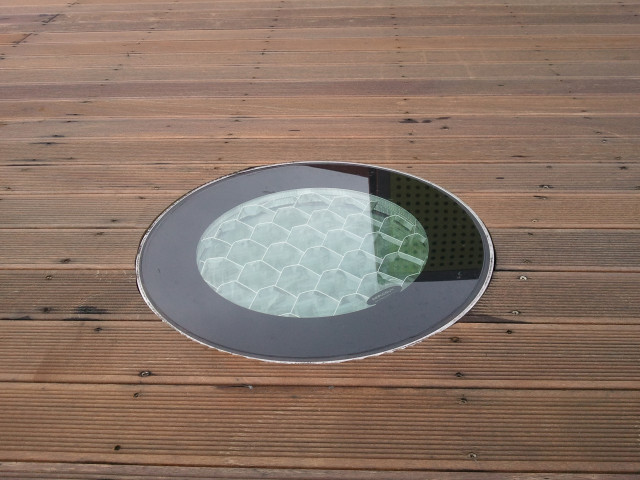

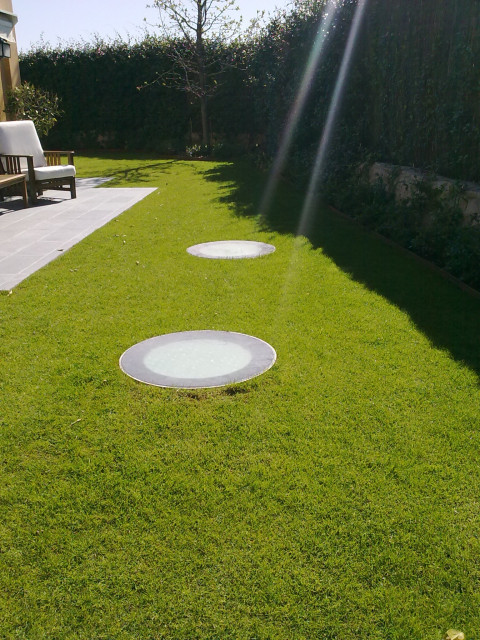

- Private terraces
- Maintenance corridors
- Industrial zones with low natural light
Wherever light is needed—but surface strength can’t be compromised—this system delivers.
Questions? Contact Steve
E-Mail: sbrennan@techcomlight.co.uk
Why Choose Our Daylight Tube?
Integrating natural light into high-traffic zones has never been easier. Our walkable and drive-over daylight tube offers:
- Energy efficiency through passive lighting
- Long-lasting performance under heavy use
- Minimal visual impact on exterior surfaces
- A sustainable alternative to electric lighting during the day
Whether for urban development or private projects, this is the daylighting solution for architects, builders, and facility managers who demand more from their materials.
Customizable Design – Round or Square Finish Available
In addition to the standard round exterior, our daylight tube system is also available with a square glass cover upon request. This custom option allows for seamless integration into tiled, paved, or geometric surface designs—without compromising performance or strength.

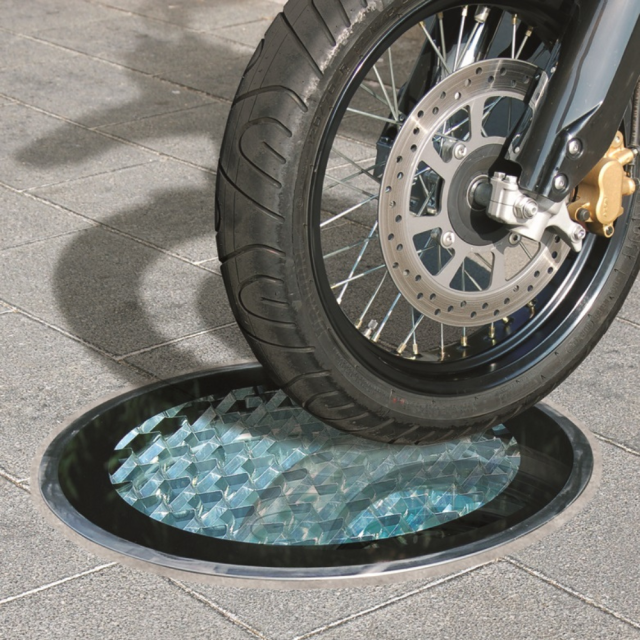

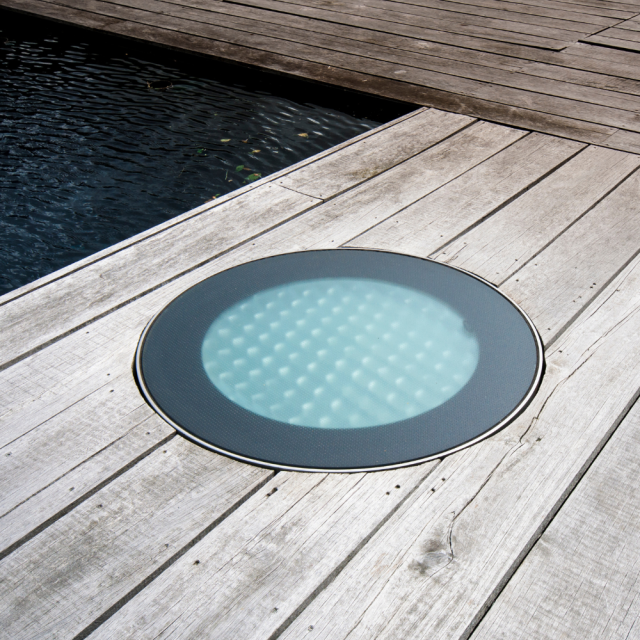

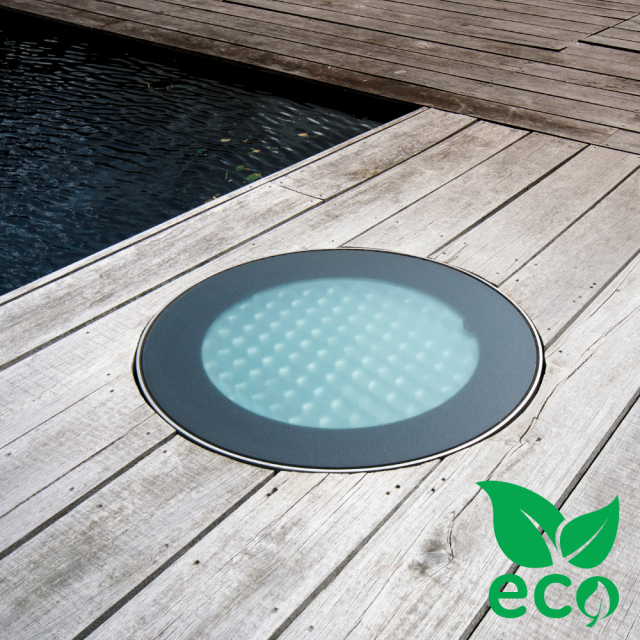

Eco walkable & drive-over
Eco is the evolution of the standard walkable & drive-over adapted for use in extremely cold or hot climates.
Low thermal transmittance U=0,74 W/m2K, due to the use of argon filled air
chamber within the dome and low Emissivity glass. As a result, this version is also suitable for passive construction.
Frequently asked questions
View the most frequently asked questions below. If your question is not listed, please contact us.
- What are the advantages of the Powerdaylight Eco, compared to the standard Powerdaylight?
The Powerdaylight ECO offers better thermal insulation compared to the standard Powerdaylight.
- What are the standard sizes of the Powerdaylight walkable & drive-over?
The Powerdaylight walkable & drive-over is available in Ø 35 cm and Ø 53 cm.
The Powerdaylight walkable & drive-over Ø 76 cm on request- Which internal finishes (ceiling diffusers) can be used with the Powerdaylight walkable & drive-over?
Just like the other variants, you can choose between round or square finishes. All ceiling diffusers are compatible with the standard, ECO, and Cradle versions.
- What are the thermal insulation values of the walkable & drive-over?
- Ø 35 cm walkable & drive-over : U = 2,6 W/m²K
- Ø 35 cm Eco walkable & drive-over : U = 0.74 W/m²K
- Ø 53 cm walkable & drive-over: U = 2,6 W/m²K
- Ø 53 cm Eco walkable & drive-over: U = 0.74 W/m²K
- Ø 76 cm walkable & drive-over: U = 2,6 W/m²K
- Ø 76 cm Eco walkable & drive-over: U = 0.74 W/m²K
All tests have been conducted by a certified body, and the results are available for review. Test method: French Règles Th‐Bât, Fascicule 3/5, § 2.2.7 or hotbox
- What are the sound insulation values of the Powerdaylight walkable & drive-over?
49dB
All tests have been conducted by a certified body, and the results are available for review. Test method: Airborne sound insulation (EN ISO 717-1)
- Has the walkable and drive-over version been tested for anti-slip properties?
Yes, it has been tested in accordance with the SLIP RESISTANCE standard UNE ENV 12633:2003 and achieved a classification of C3 (Rd value 56).
- Is the Powerdaylight walkable and drive-over version tested for scratch resistance?
Yes, it has been tested for scratch resistance and achieved a hardness rating of 6.5 on the Mohs scale, indicating a high level of surface durability.
- What are the distributed load and local load capacities of the walkable and drive-over daylight tube?
Walkable version:
- Local load: 400 kg
- Distributed load: 500 kg

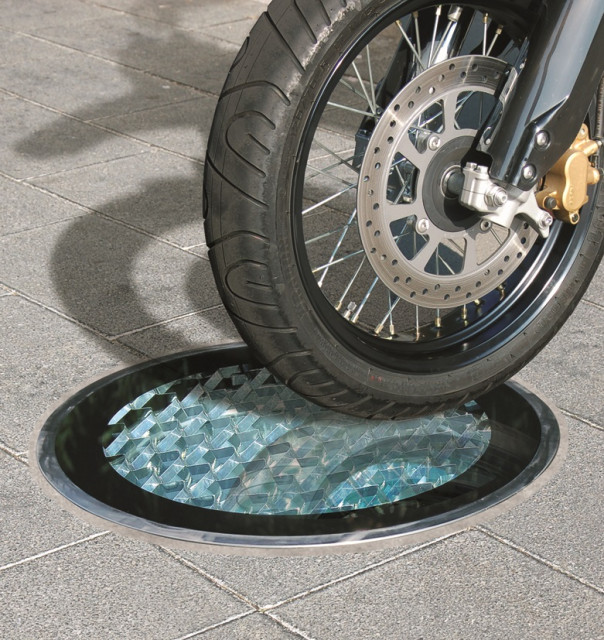

Drive-over version:
- Local load: 1,000 kg
- Distributed load: 500 kg
These values indicate the product’s ability to withstand both concentrated point loads (e.g. heels, chair legs, or tires) and evenly spread loads across the surface, ensuring safety and durability in various applications.
- Where can I find all the data for Powerdaylight walkable & drive-over
You can find installation instructions, product drawings, information, and specifications on our webshop at shop.techcomlight.co.uk. On the product pages, you'll find additional information and downloads. If you can't find what you're looking for, you can always contact us.
- Installation of the Powerdaylight walkable & drive-over?
We provide digital installation instructions, allowing any local contractor to install the system. If you can't find a local contractor, please contact us. We often have local installers available in your area, and Techcomlight can also arrange the installation if needed.

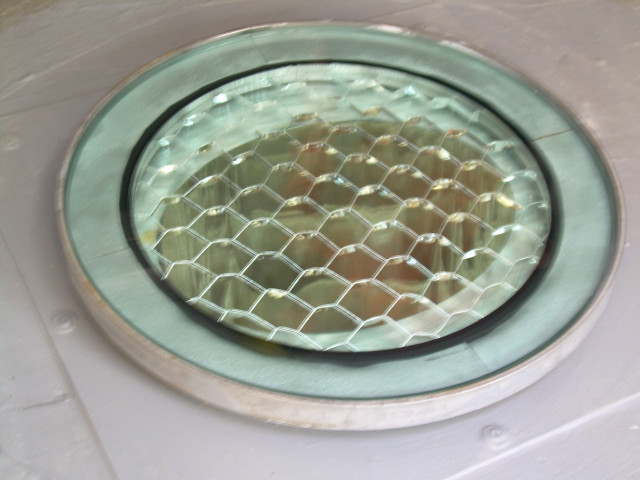

High-Spec Safety Glass Construction
- Triple laminated glass
- Tempered safety glass
- Non-slip outer face treatment
- Anti-condensation air chamber
- Interior laminated double glass
- Available in three sizes: 35 cm, 53 cm, and 76 cm on request
- Standard round, square glass cover upon request.
Popular products
What our customers say about us

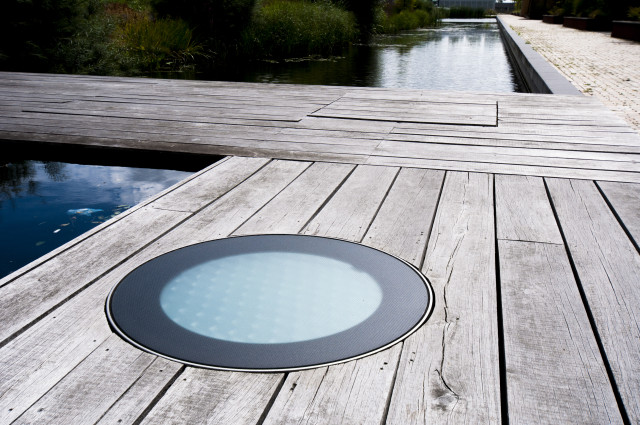

"At Park 20|20, the first Cradle to Cradle-inspired business park in The Netherlands, Techcomlight contributed to the daylighting strategy by installing several walkable daylight tubes. These advanced systems bring natural light deep into the building cores and underground levels without compromising walkability or safety. "
Park 20|20 Sustainable Business ParkHoofddorp, The Netherlands

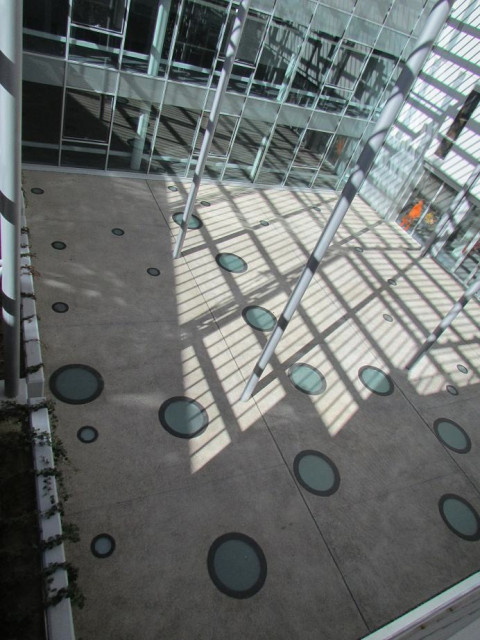

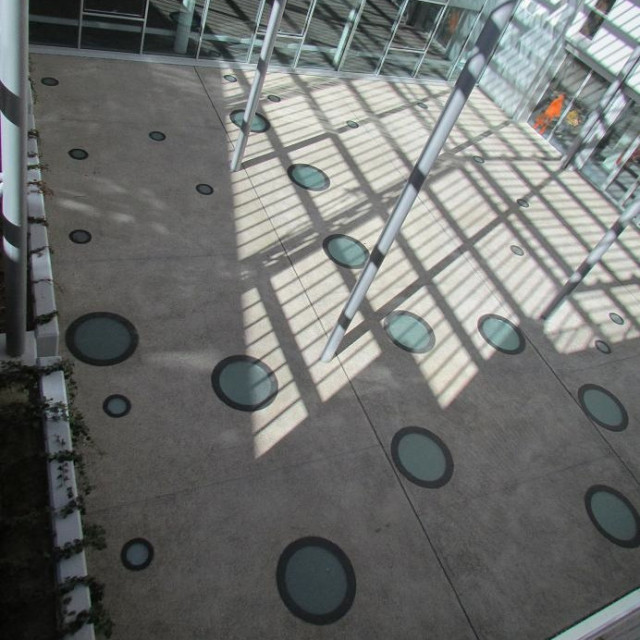

"Techcomlight successfully delivered and installed several daylighting systems in the central courtyard of this facility. The project involved the integration of both Ø35 cm and Ø53 cm diameter Powerdaylight systems, providing natural light to an otherwise enclosed indoor space."

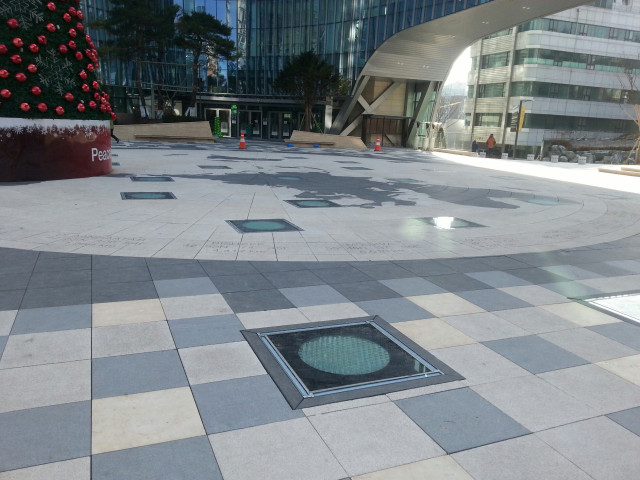

Universitat Rovira i Virgili Tarragona, Spain"For the underground worship spaces of Sarang Church in Seoul, Techcomlight supplied 44 daylight systems with a diameter of 760 mm. These large daylight tubes were specially selected to channel natural light deep into the subterranean church halls, creating a bright, welcoming, and spiritually uplifting environment below ground level."
Sarang ChurchSeoul, South Korea

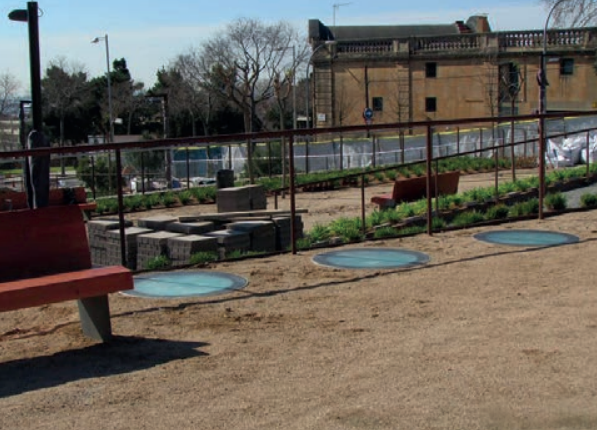

To support the city’s sustainability goals, Techcomlight, in collaboration with environmental architects, integrated walkable Powerdaylight into the landscape design. These systems allow natural light to penetrate into the underground facilities without interrupting pedestrian movement above.

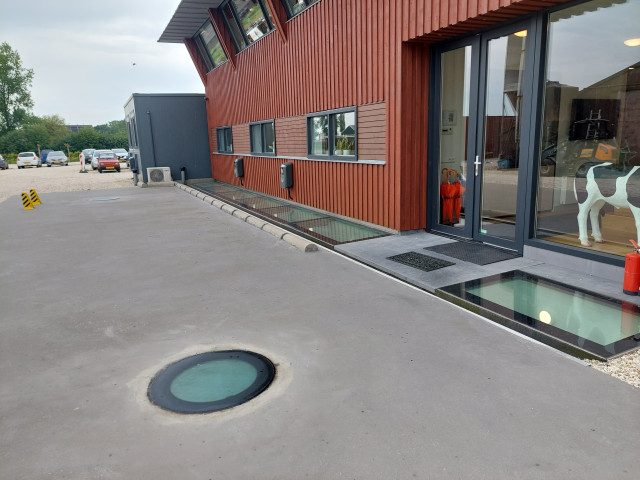

Public gardens Barcelona City CouncilBarcelona, Spain"For the new CowManager headquarters in Harmelen, Techcomlight supplied and installed several drivable daylight tubes from the Powerdaylight series. These systems were integrated into areas with vehicular access, enabling natural daylight to penetrate indoor zones."
CowmanagerHarmelen, The Netherlands
"As part of the ongoing construction and modernization of the world-renowned Sagrada Família, Techcomlight supplied and installed several walkable daylight tubes within the basilica’s upper floor zones."
Basilica de la Sagrada FamíliaBarcelona, SpainCan we help you?
